Overview

The Host computer is the brain of the Hausmate system. The Host receives data from Hausmate Gateways( Zone Gateways and DMX Gateways) and converts this into a real-time model of the state of the house: temperatures, light levels, humidity and occupation. It publishes every change to the apps so that they can initiate control instructions in response. All the incoming data is also logged for later use by predictive apps.

The Host computer is also connected to the LAN and has suitable firewalls against unauthorised access.

Hardware

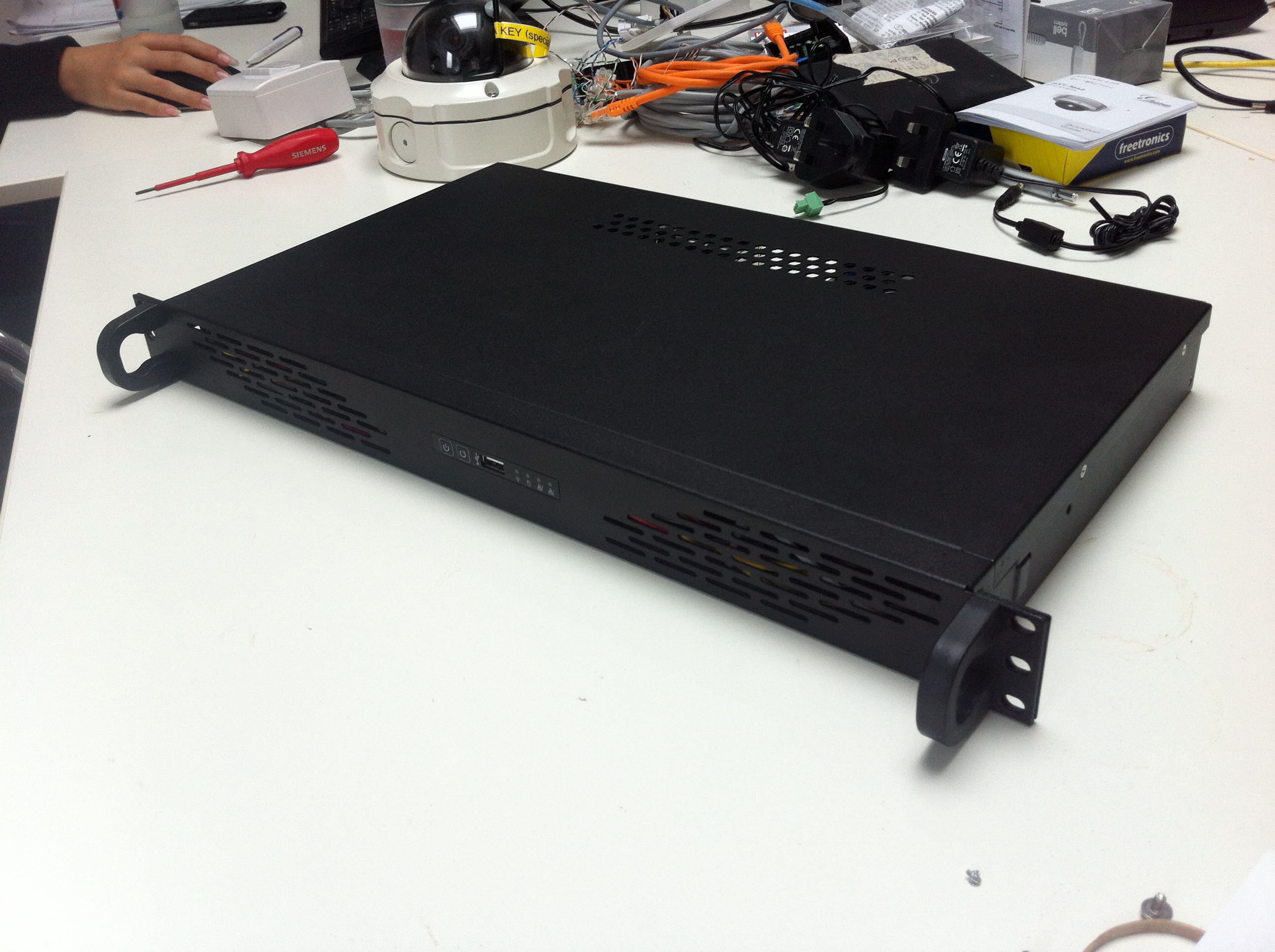

The Host is an x86 computer with low power consumption and a small footprint. It needs no screen, mouse or keyboard and it connects to the Hausmate network (HAN) and the local area network (LAN) via CAT5 cabling. It is normally mounted in the 19'' rack, but it may be also wall mounted.




  • Samsung 320Gb hard drive, 5400 RPM
  • Gigabyte GA-C847N motherboard with
  • Processor is Intel® Dual-core Celeron® 847 processor (1.1 GHz)
    • 2 MB L3 cache
    • 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    • Dual channel memory architecture
    • Support for DDR3 1333/1066 MHz memory modules
    • Intel® NM70 Chipset
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    • Realtek ALC887 codec
    • High Definition Audio
    • 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • 2 x Realtek GbE LAN chips (10/100/1000 Mbit)
    • 1 x PCI slot

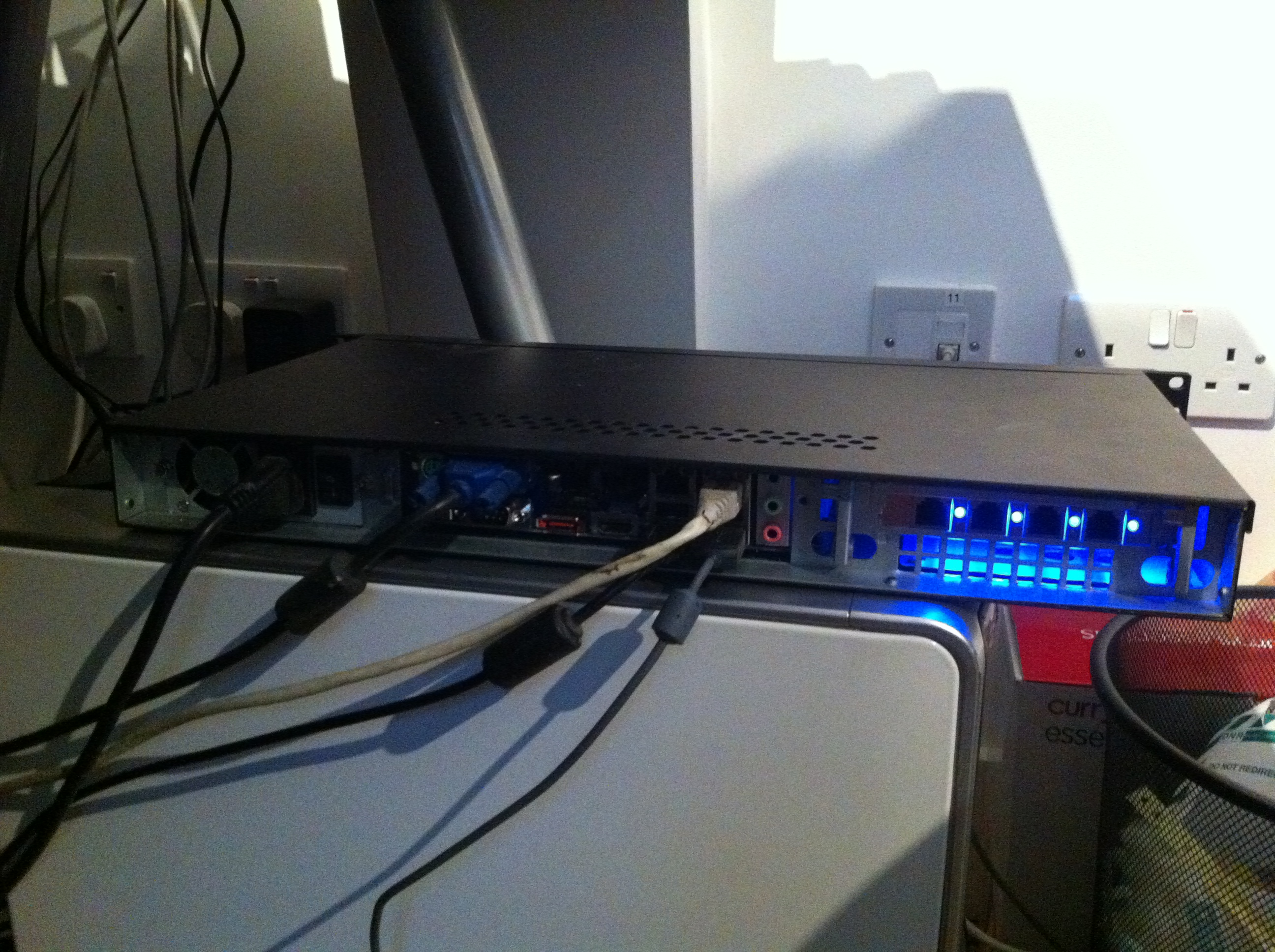

    • Rear ports/connectors
      • 1 x PS/2 keyboard port
      • 1 x PS/2 mouse port
      • 1 x D-Sub port
      • 1 x COM port
      • 1 x HDMI port
      • 4 x USB 2.0/1.1 ports
      • 1 x eSATA 3Gb/s connector
      • 2 x RJ-45 ports
      • 3 x audio jacks (Line In/Line Out/Microphone)
  • LAN should be connected to the port nearest the audio 3.5mm jacks.
  • 1x USB in the front.
  • 4Gb RAM - 2x 2Gig, 256M x 64 bit, DDR3-1333 (Mhz)
  • BIOS - AMI EFI BIOS, DualBIOS,
  • IEC power lead (kettle plug) with on/off switch on the back
  • on/off and reset push buttons on the front.
  • power-on, hard disk access and ethernet (x2) LEDs on the front.
  • 4x FXS card - Digium Wildcard TDM410 - connect to analogue telephone lines from PSTN (POTS) exchange.
